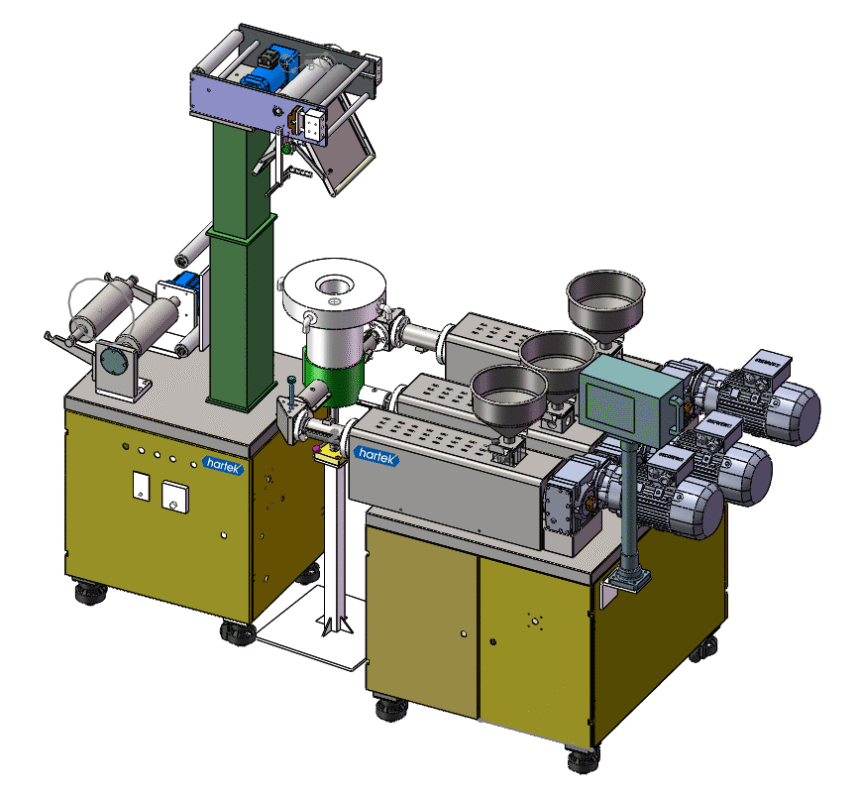

Laboratory three-layer co-extrusion film blowing machine

Product performance of the laboratory three-layer co-extrusion film blowing machine:

* The single-screw film extrusion casting experimental equipment is driven by an international brand servo motor, and the extrusion is stable

* The internationally renowned brand melt pressure and temperature sensors are selected, and the test data is highly accurate

* The computer-based measurement and control system and the friendly operation interface are convenient to operate and more powerful

* Real-time measurement and graphic display of important data such as the extrusion system and auxiliary system, convenient observation

* Emergency shutdown device and various safety protections to ensure the safety of operators

* Passed the CE certification of SGS company

* Touch screen and siemens PLC centralized control system, high intelligence, easy operation

* The film blowing frame is electrically lifted and easy to operate

Application of the laboratory three-layer co-extrusion small film blowing machine:

* Material film blowing performance test

* Film blowing production process parameter optimization

* Masterbatch dispersion performance test

* Research on the dispersion performance of pigments

* Research on the film blowing molding performance of materials

* Detection and evaluation of defects such as fish eyes and crystal points

Technical Parameters of laboratory three-layer co-extrusion small film blowing machine：

Model / 型号	HTBS-20C
Screw Diameter / 螺杆直径	20mm
L/D Ratio / 长径比L/D	28:1
Max. Speed / 最高转速	120rpm
Heating/Cooling Method / 加热/冷却方式	Electrical heating / Air cooling
Max. Temp. / 最高温度	350℃
Temp. Control Accuracy / 温控精度	±1.0℃
Pressure Measuring Range / 熔体压力测量范围	0~50MPa
Pressure Measuring Accuracy / 熔体压力测量精度	0.2%F.S
Traction Speed / 牵引速度	0~10m/min Stepless Adjustment
Max. Width of Film Entrance / 薄膜最大折径	200mm
Weight / 重量	1280kg
Dimension / 外形尺寸	L×W×H 2980×1944×1670mm
